Conveyors of various types such a belt, roller, wheel and chain, suit different applications. They can convey horizontally, vertically, around corners, incline or decline. Usually they are electrically driven, but often gravity - a cheap source of power - can play a crucial part.


Gravity Conveyor Range

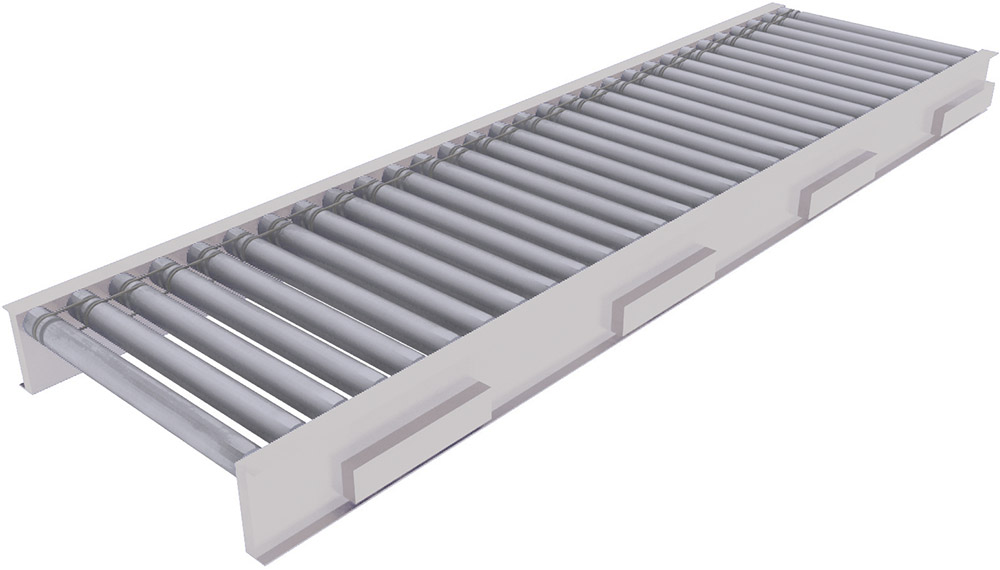

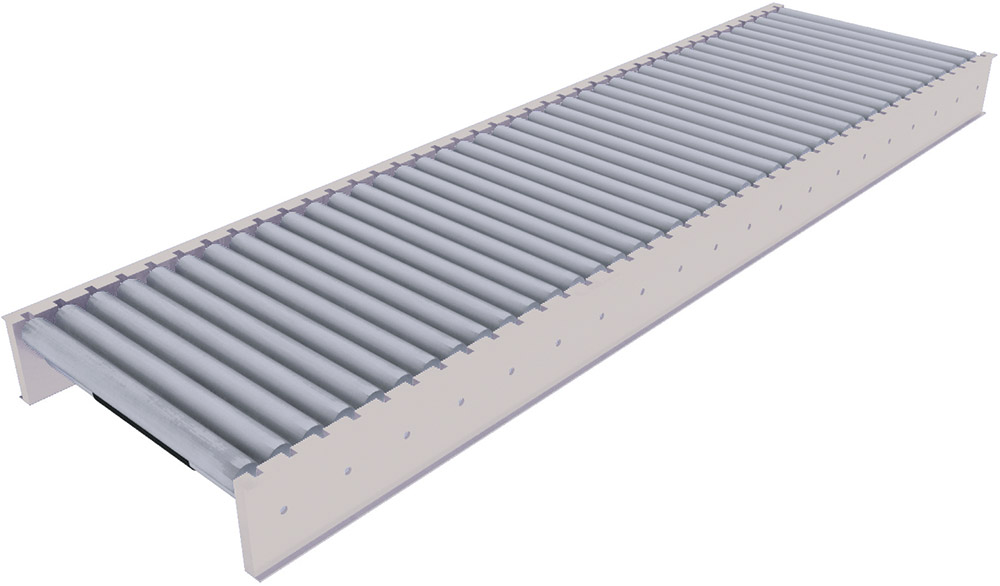

Gravity Roller Conveyor

Our gravity roller model is available in straight sections. Sections can be angled to product moved by gravity, or installed level to be manually pushed. The 'Cleanline' side channel design significantly reduces operator exposure to OH&S risks. This model handles a wide variety of different products with irregular surfaces.

Widths available: 464 mm, 616 mm, 768 mm & 921 mm

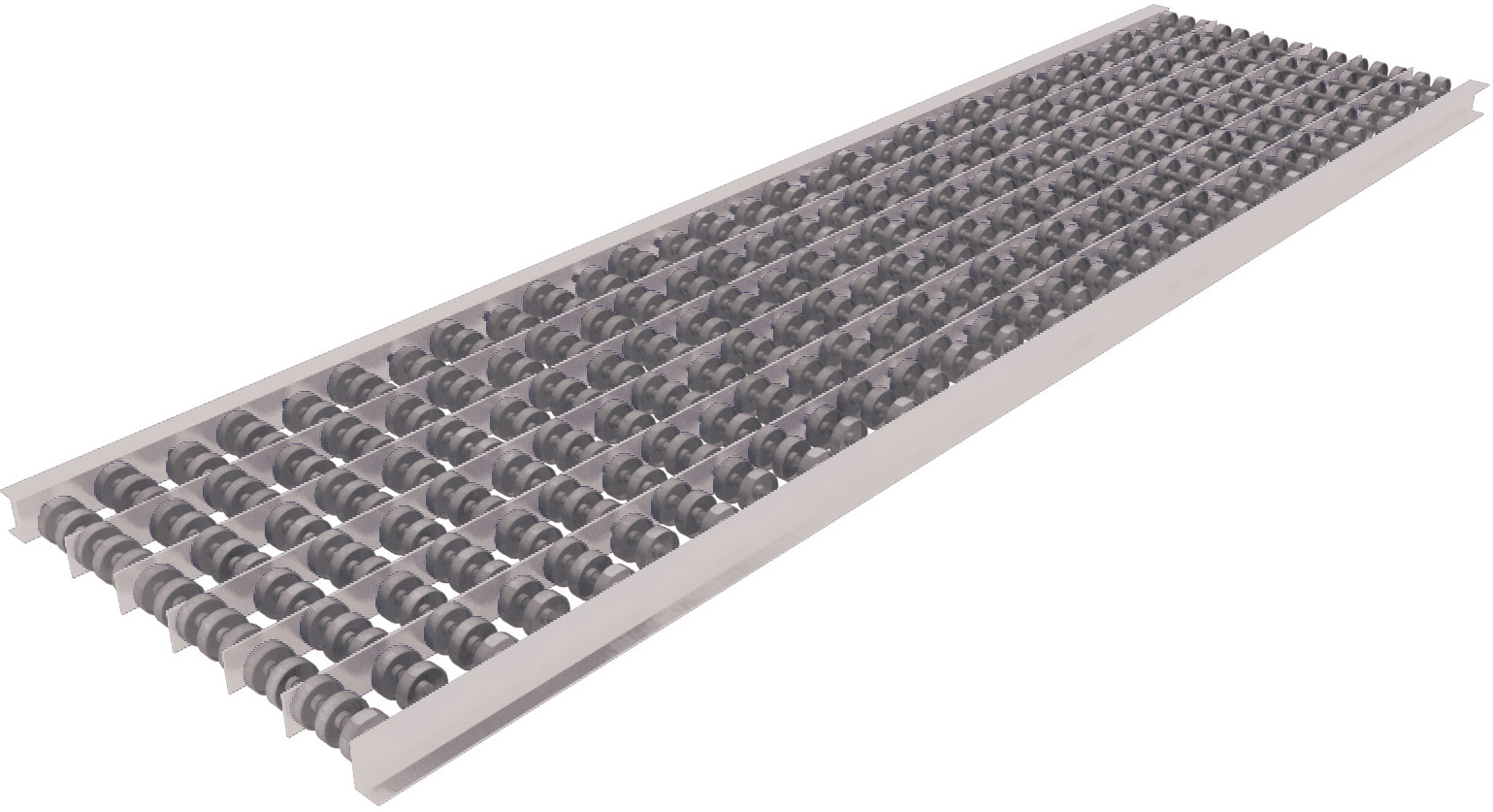

Gravity Wheel Conveyor

The gravity wheel model is available in straight sections and curves. Sections can be angled so product moved by gravity, or installed level to be manually pushed. It needs less slope than roller conveyors and can also be used for curve applications. Due to the differential action of the individual wheels, the gravity wheel conveyor provides good tracking ability. Its lightweight construction allows easy relocation or adjustments at any time.

Widths available: 464 mm, 616 mm, 768 mm & 921 mm


Powered Conveyor Range

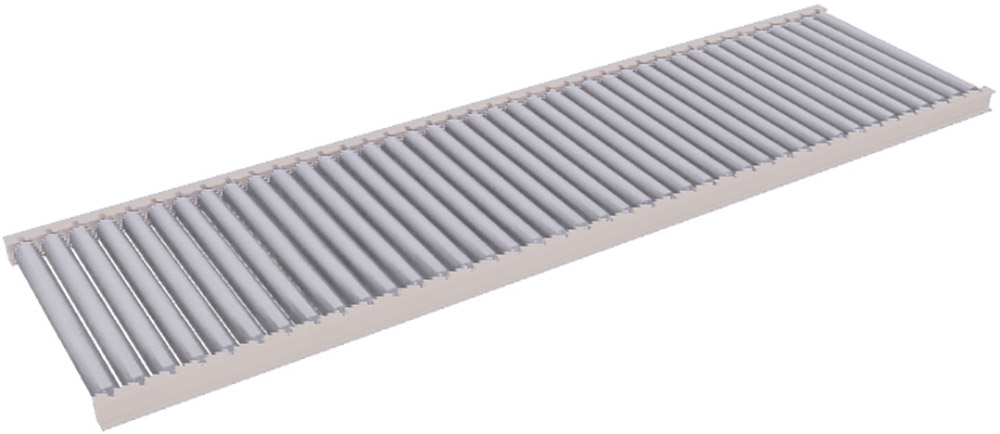

Lineshaft Conveyor

The highly versatile lineshaft conveyor can run multiple conveyors and a variety of equipment off a single drive, making this an economical choice for a large range of conveying needs. Lineshaft is also available on curved beds as well as junctions, merges and divert beds. Independently driven carrier rollers make lineshaft more versatile than conventional belt or chain-driven live roller conveyors. Fewer drives means less noise, lower initial cost, and lower maintenance costs.

Widths available: 464 mm, 616 mm, 768 mm & 921 mm

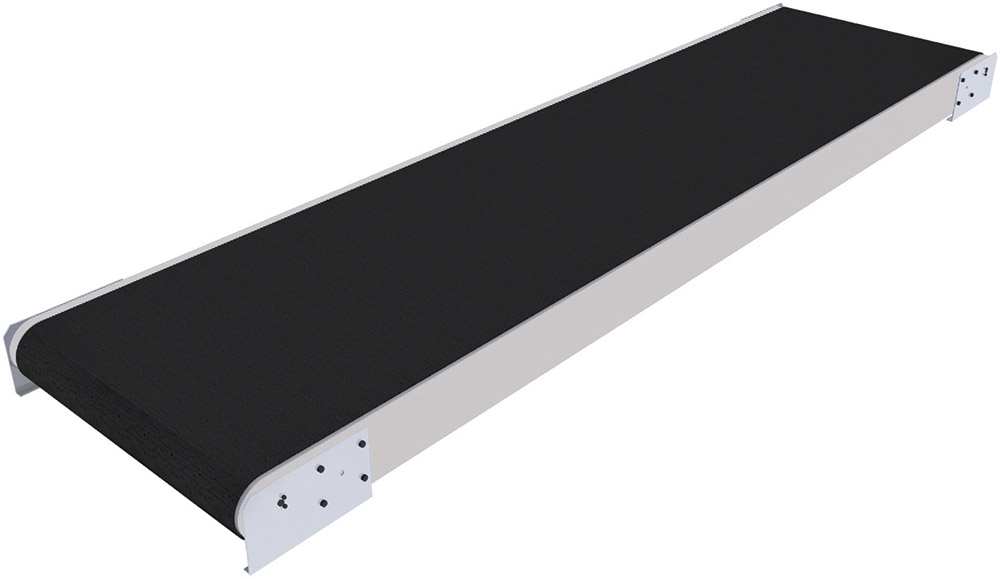

Slider Bed Belt Conveyor

This conveyor model economically handles products over long distances. It can transport a wide range of load sizes and shapes, including difficult to convey products such as bags, bundles, rolls and unpackaged goods. The belt moves across a steel supporting bed, offering an extremely stable surface. Fitted with rough top belting, it can be used to convey goods between different floor levels.

Widths available: 464 mm, 616 mm, 768 mm & 921 mm

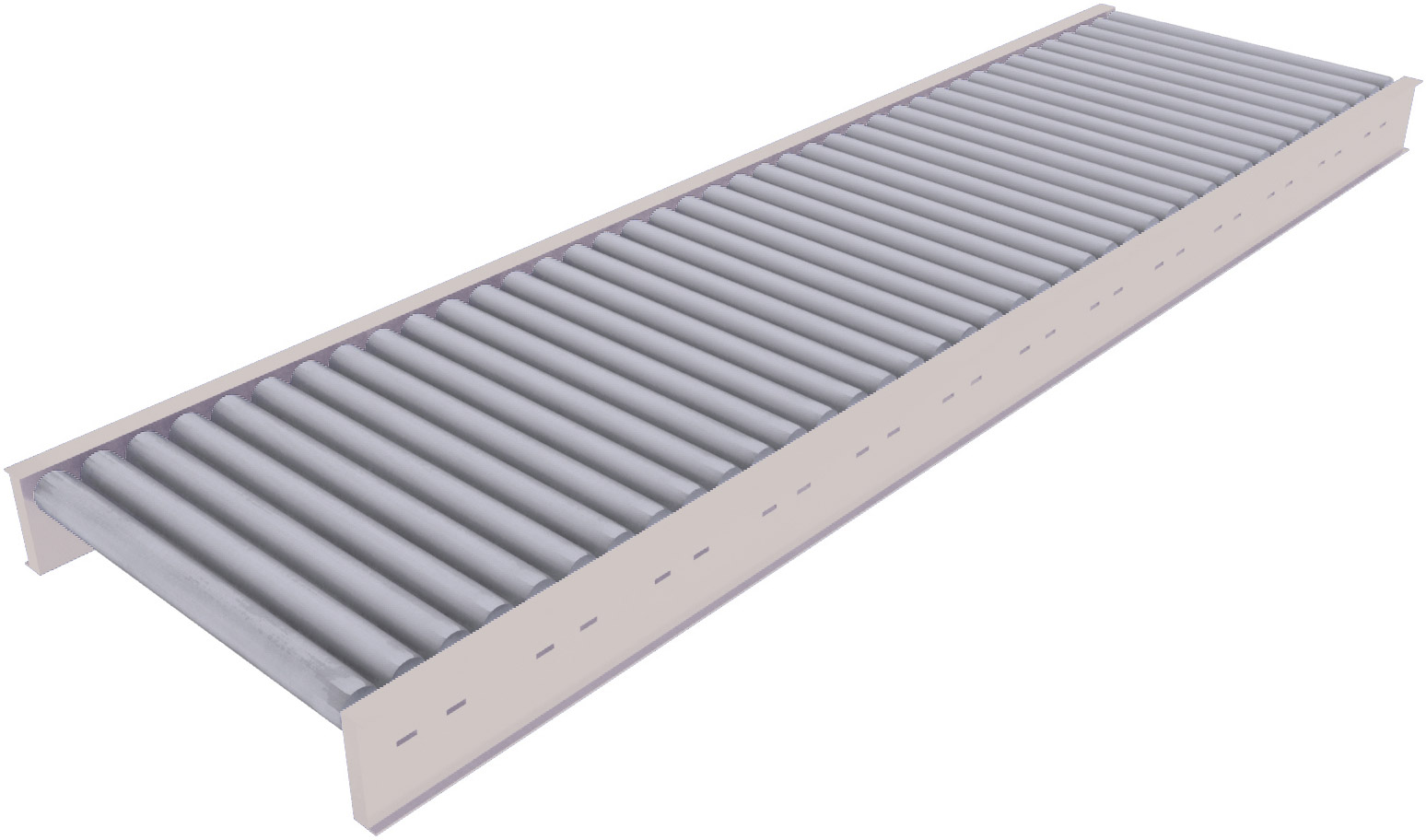

Live Roller Conveyor

This belt-driven roller conveyor enables variable drive pressure throughout the system. It uses a roller bed as the conveying surface and a flat belt as the driving force. This gives optimum reliability for rugged conveying applications, including cartons, totes or bagged and bundled items. At merge and divert points, pressure can be increased to full driving force.

Widths available: 464 mm, 616 mm, 768 mm & 921 mm


Accumulation Conveyor Range



Model 24V dc

The 24V dc accumulation conveyor offers true 'zero pressure' accumulation. A motorised roller ensures products are held captive within each accumulations 'zone'. Start/stop control is performed automatically and without the need for additional air-operated devices such as pneumatic roller brakes and case stops.

Widths available: 464 mm, 616 mm, 768 mm & 921 mm



Model 1265

The 1265 accumulation conveyor is a general, zero pressure accumulation conveyor that uses pneumatic zone control, and is well-suited to a variety of industries and applications. The unit's narrow belt drive mechanism is inherently quiet and has been designed to minimise friction, so fewer, smaller drives can power longer runs. Low maintenance and minimal energy consumption result in exceptional operational efficiency.

Widths available: 464 mm, 616 mm, 768 mm & 921 mm


Pallet Conveyor Range

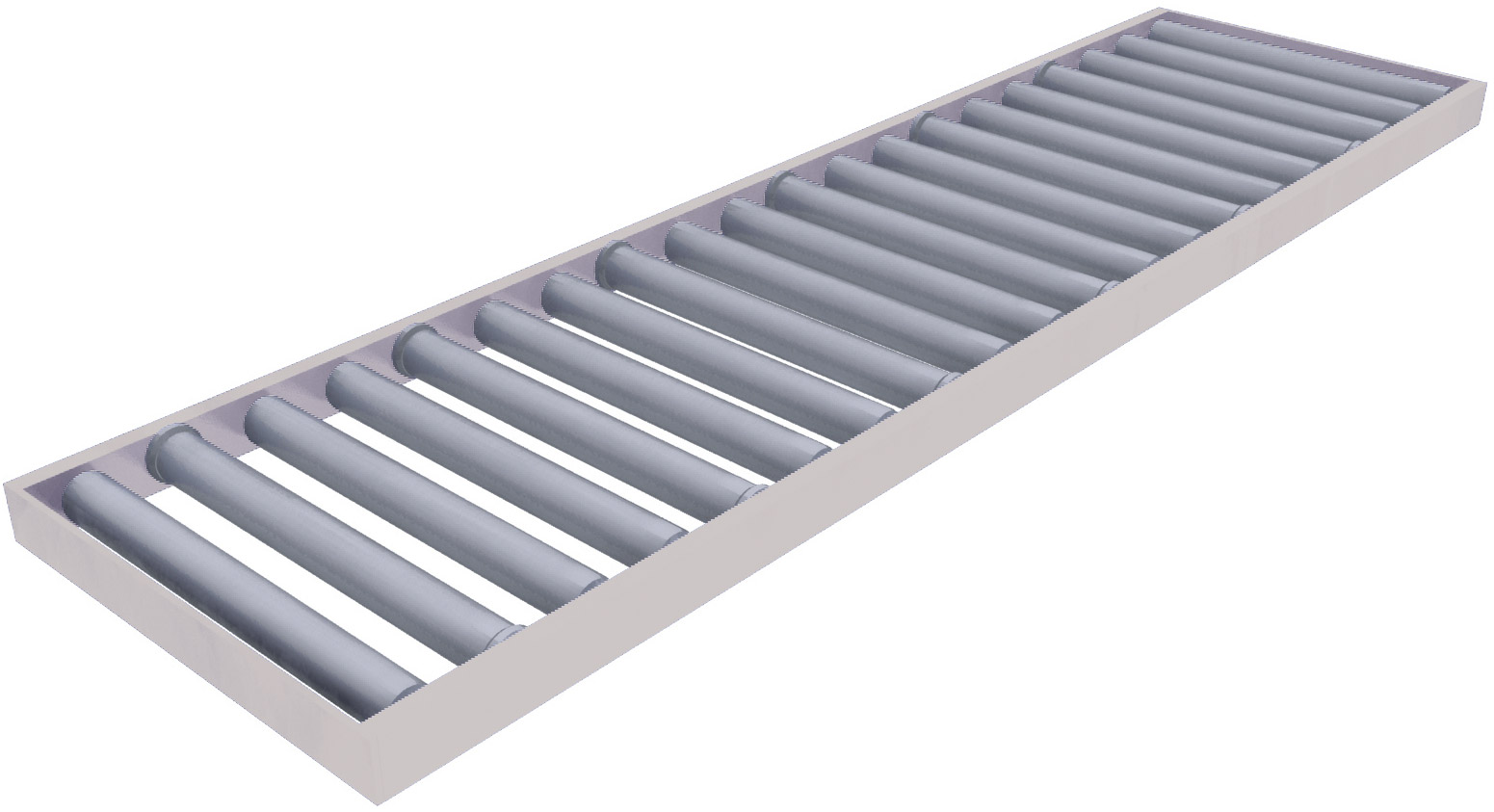

BK25 Smart Pallet Roller Conveyor

BK25 Smart pallet roller conveyors are designed to handle everything from pallets and drums to work-in-process containers. They are built to resist heat, dirt, oil, and other contaminants. Smooth transportation is provided through the contact between pallet and roller. Guide flanges on the supporting rollers ensure that the pallets do not move sideways on the conveyor.

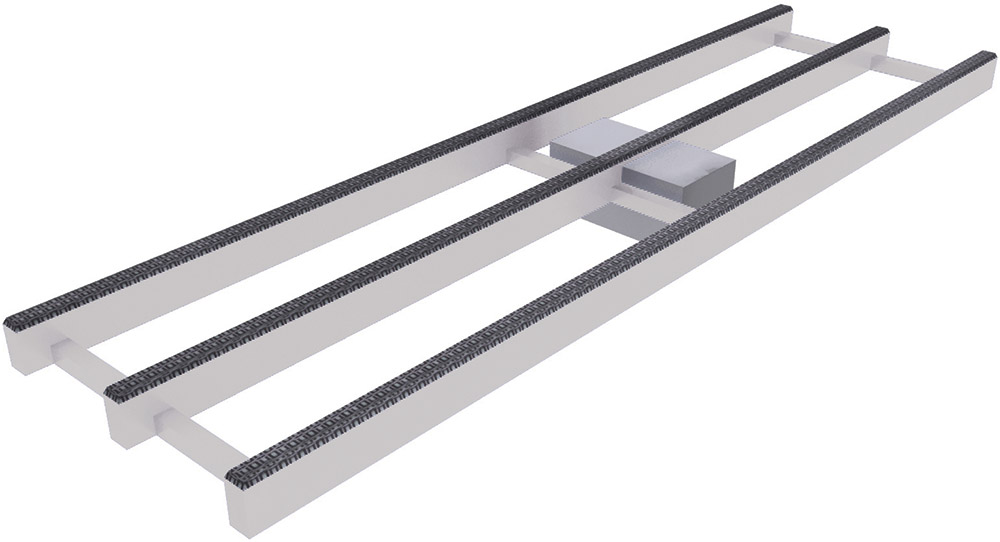

Model T5 Pallet Chain Conveyor

T5 pallet chain conveyors are designed for operational reliability. They are solidly built and require minimal maintenance. Chain conveyors are used when the bottom of the load can be bridged across its width. Two and three strands of chain are offered for positive load location and transport.

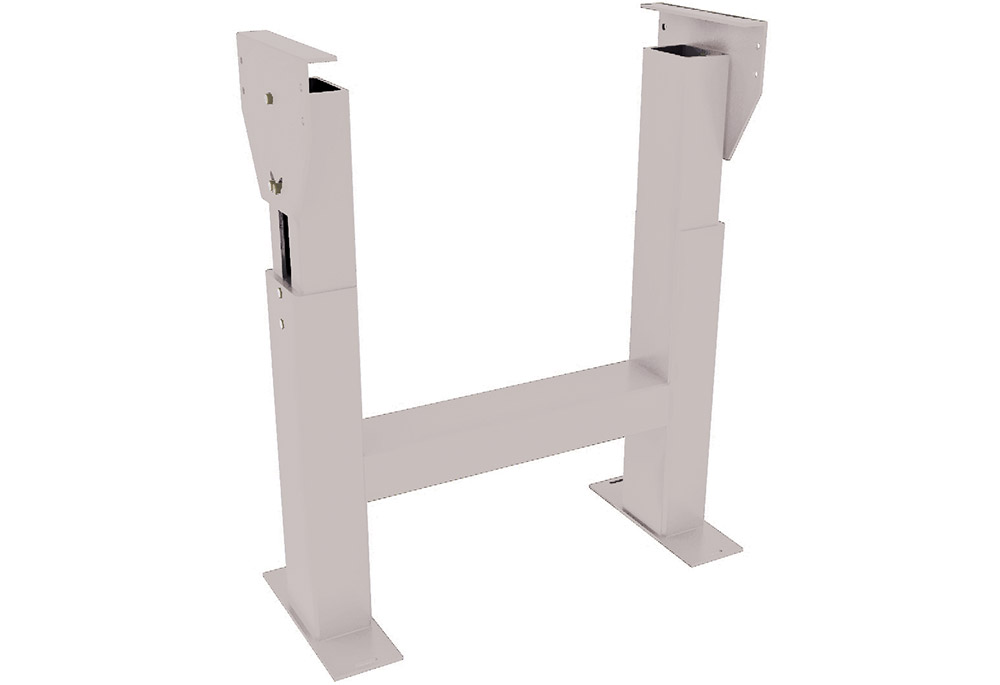

Conveyor Support Range



Conveyor supports are available in a range of configurations to suit a wide variety of installations. All conveyor supports are adjustable and have a powder-coated finish.

Conveyor support assemblies available include:

  • Low to high-level adjustable floor-mounted supports
  • Ceiling-hung and cantilever supports
  • Double and triple-wide support assemblies

Widths available: 464 mm, 616 mm, 768 mm & 921 mm
